PHLTD LA38-11D Button Switch with Light, 220V, Self-locking, Self-resetting, Flat Head Control, LA38-11DN, 22MM Opening

PHLTD Flat Head Button Switch Product Parameter Table
Model	Dimension	Product current	Shell material	Electric shock form	operation structure	Product Color	Connection

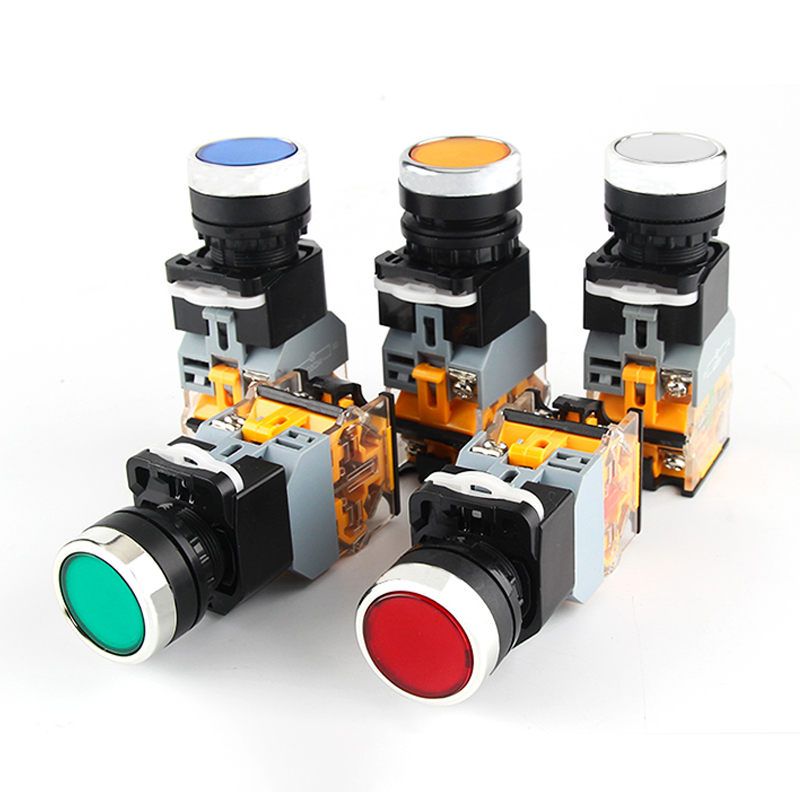

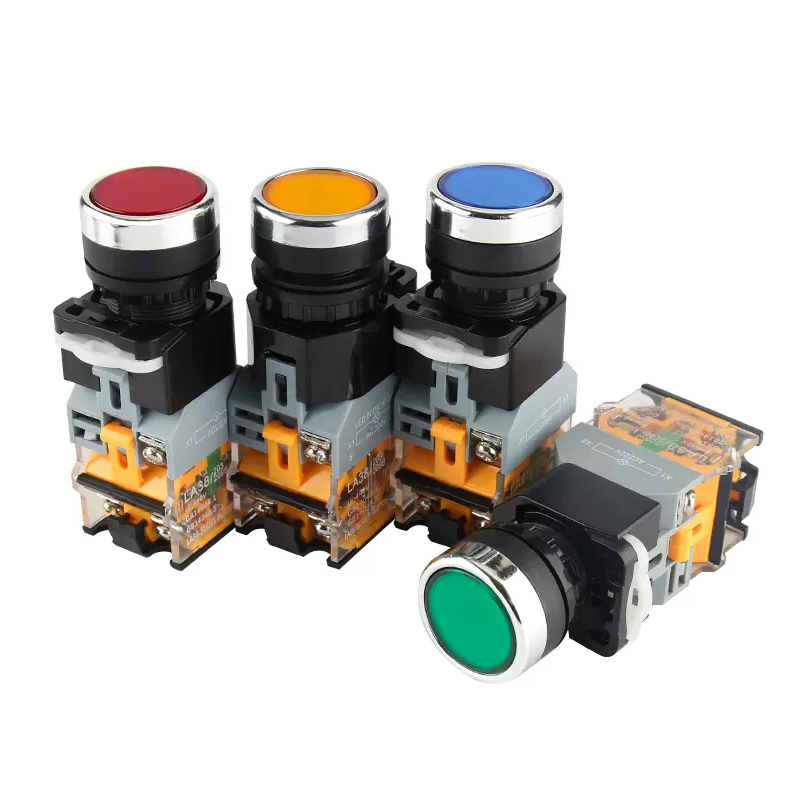

LA38-11D	22MM	Applicable below 10A	High temperature flame-retardant plastic	Open and close once	Self resetting/self-locking type	Red/Yellow/Blue/Green/White	Screw compression

Model: LA38-11DN

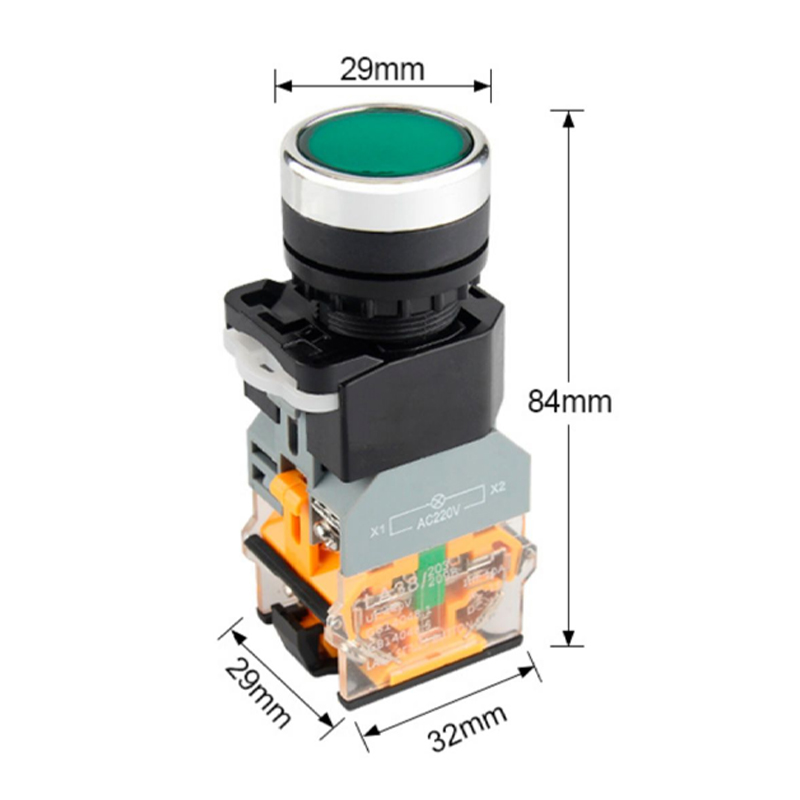

Size: 22MM Round
Operation Mode: Emergency Type, with Light Self-Resetting (Press to Pop Up)
Working Voltage: 24V, 110V, 220V, 380V, etc., supporting multiple voltages
Working Current: 5A
Rated Heating Current: 10A
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 1000MΩ

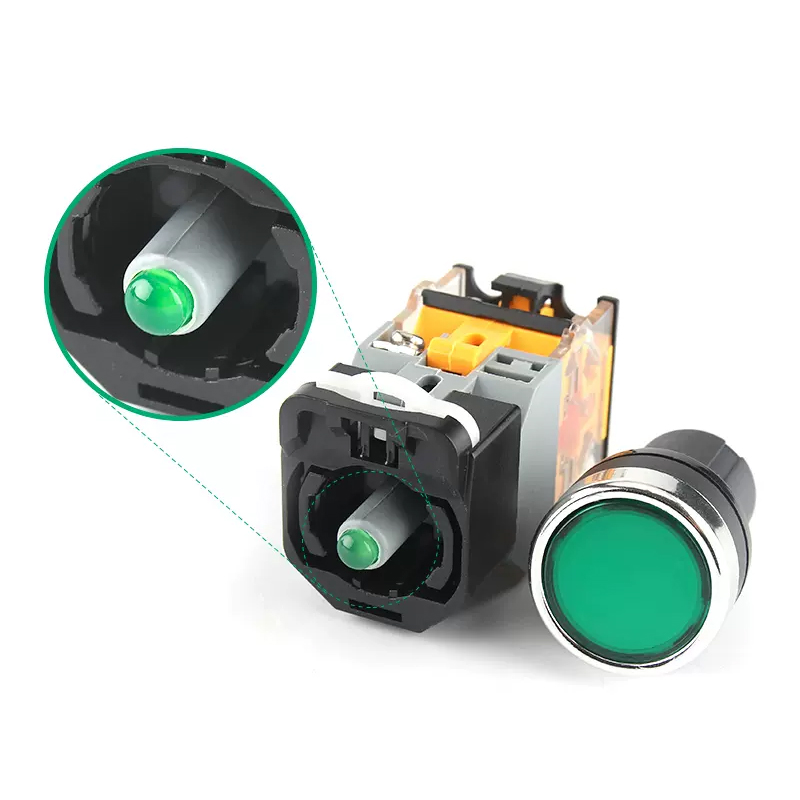

LED Indicator Light: Available in various colors (red, green, yellow, blue, white, etc.), with a lifespan of up to 30,000 hours

Product Performance:

• High Reliability: Made with high-quality materials and precision manufacturing to ensure stable operation in harsh environments.
• Long Lifespan: Both mechanical and electrical lifespans meet high industry standards, reducing the frequency of replacements and lowering maintenance costs.
• Multifunctionality: Integrates multiple functions, including start, stop, self-reset, and self-locking points, to meet various control requirements.
• Intuitive Indication: LED indicator lights provide a clear status display, enabling operators to quickly identify equipment status.

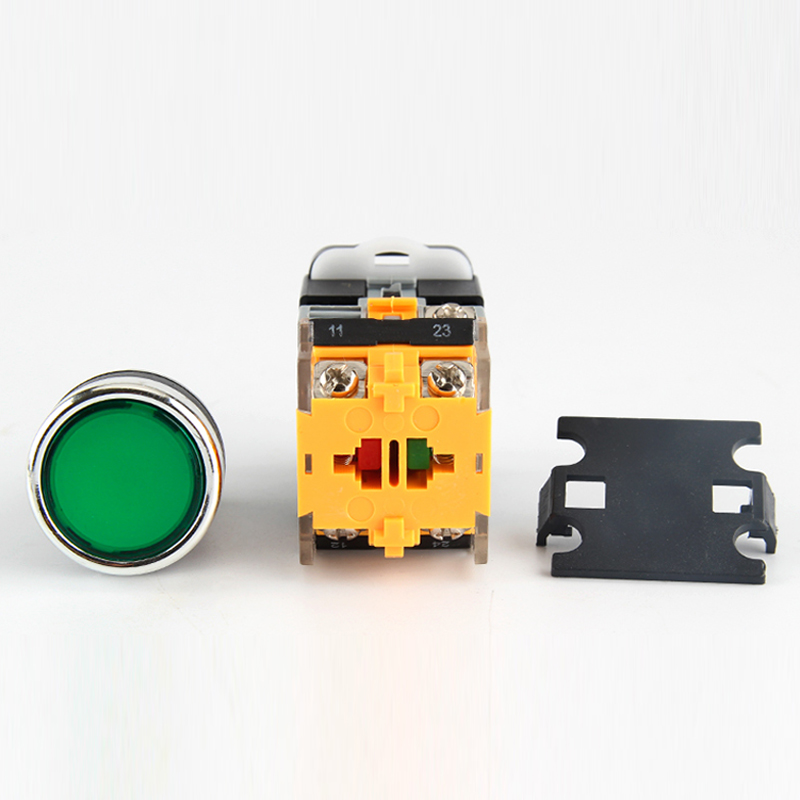

• High-Temperature Flame Retardant: The shell is made from high-temperature flame-retardant plastic for improved safety during use.
• Wide Applicability: Suitable for electromagnetic starters, contactors, relays, and other electrical circuits with AC 50Hz (or 60Hz), voltage up to 380V, and DC voltage up to 220V. It is especially suitable for applications requiring light signal indication.
