不锈钢系列

不锈钢电气解决方案

PHBXG系列

PHBXG系列包含多种型号,从小到大应有尽有。外壳采用优质不锈钢制成,具有卓越的耐用性和耐腐蚀性。这些配电箱专为工业和户外应用而设计,适用于严苛环境,可提供可靠的保护和配电功能。是工厂、建筑工地和其他高要求场所的理想之选。

它们适用于对配电箱要求极高的严苛环境:

  • 工业用地

  • 户外环境

  • 重型应用

不锈钢配电箱、耐用不锈钢电源箱、重型不锈钢电气柜、工业不锈钢外壳

我们的交货时间大约是一周

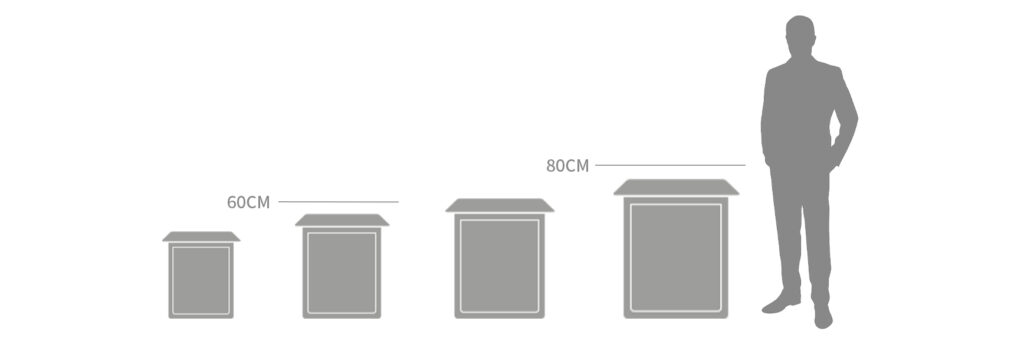

Stainless Steel Series Size Preview
Stage distribution box wiring diagram, displaying power input, output, and connection methods

根据要求,我们将单独创建您的配电箱。 如果你想要空箱,可以免费给你打孔。

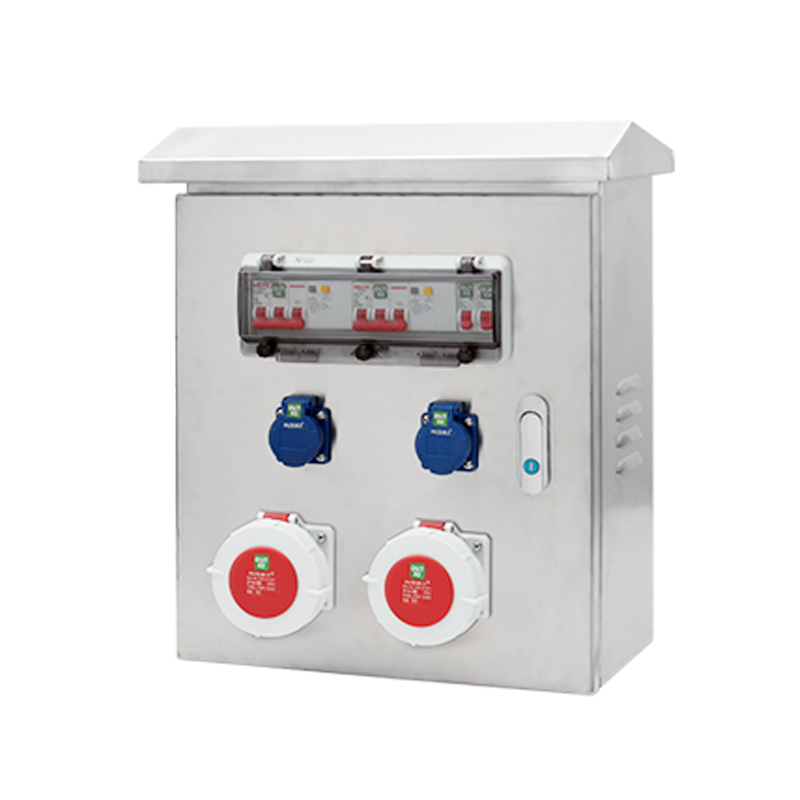

1PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and two switches protection size 500X400X180mm

输出电路:2*5孔32A

2*220V 国标
5孔 10A

开关保护:2*3P+N 32A漏电

2*1P 16A 空气开关

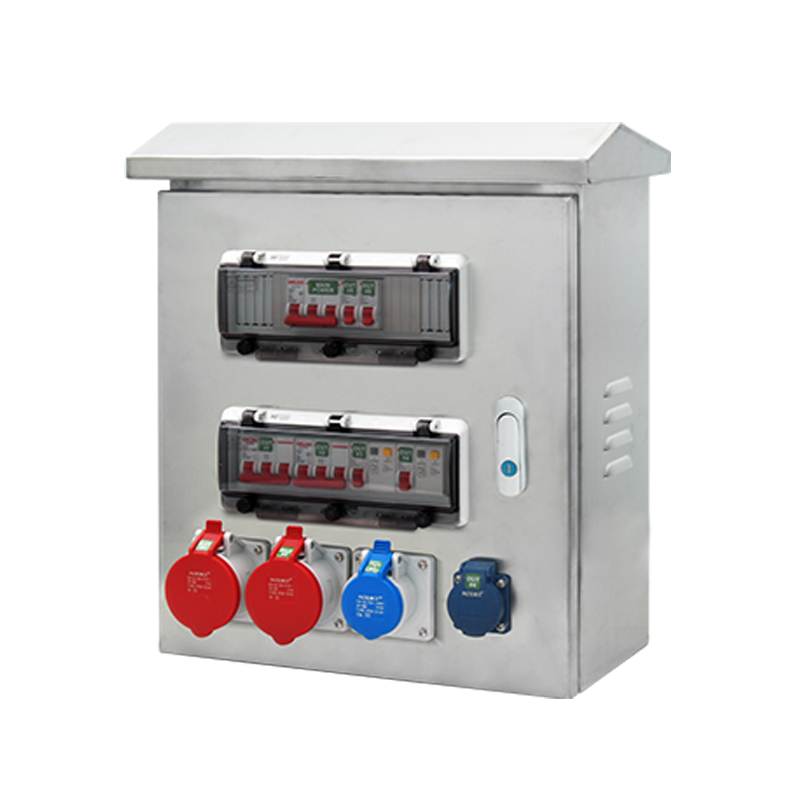

2PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three switch protection sizes 500X400X180mm

输出电路:2 个 32A 五孔电路

1*16A 三孔插座,    1*220V 国标   五孔插座,10A插座

开关保护:1*主闸3P 63A气动开关

2*3P+N 32A漏电

2 件 1P+N 16A 漏电

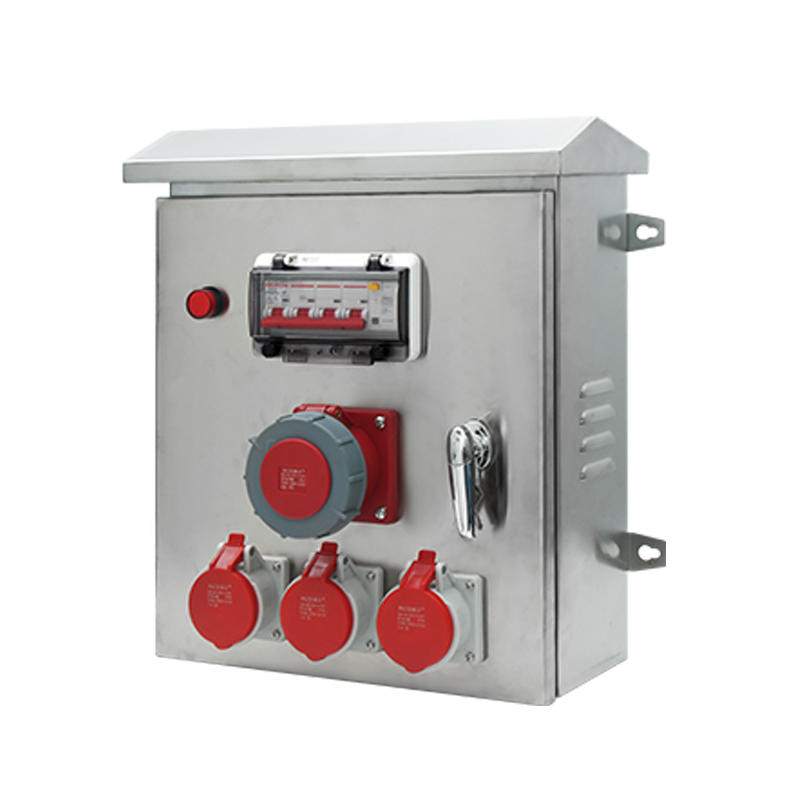

3PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and one switch protection size 500X400X180mm

输出电路:1*5孔63A

3*5孔16A

开关保护:1*4P 125A 漏电流

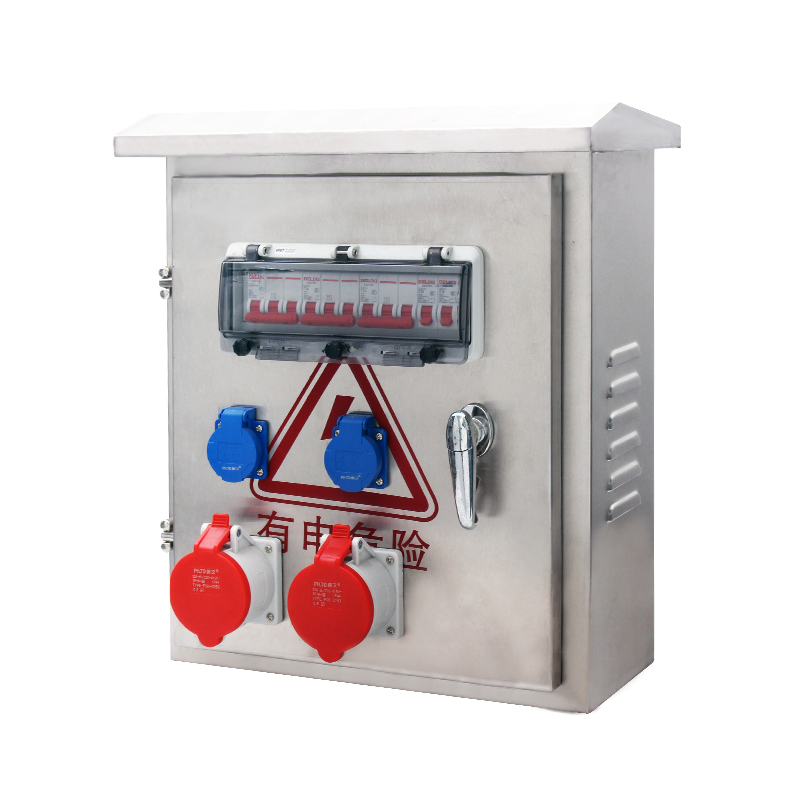

4PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three types of switch protection with total switch size 500X400X180mm

输出电路:2*4孔32A

2*220V 国标
5孔 10A

开关保护:主闸3极63A气动开关

2*3P 32A 空气开关

2*1P 16A 空气开关

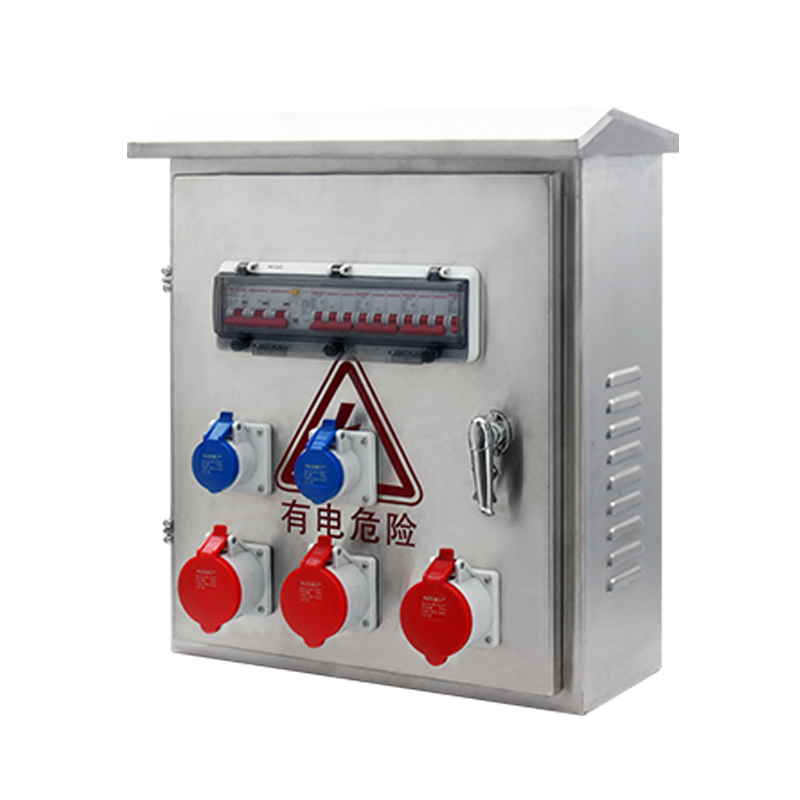

5PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three types of switch protection with total switch size 600X500X180mm

输出电路:3 个 32A 五孔元件

2*16A 3孔

开关保护:主开关 3P+N 100A 漏电

3*3P 32A 空气开关

2*1P 16A 空气开关

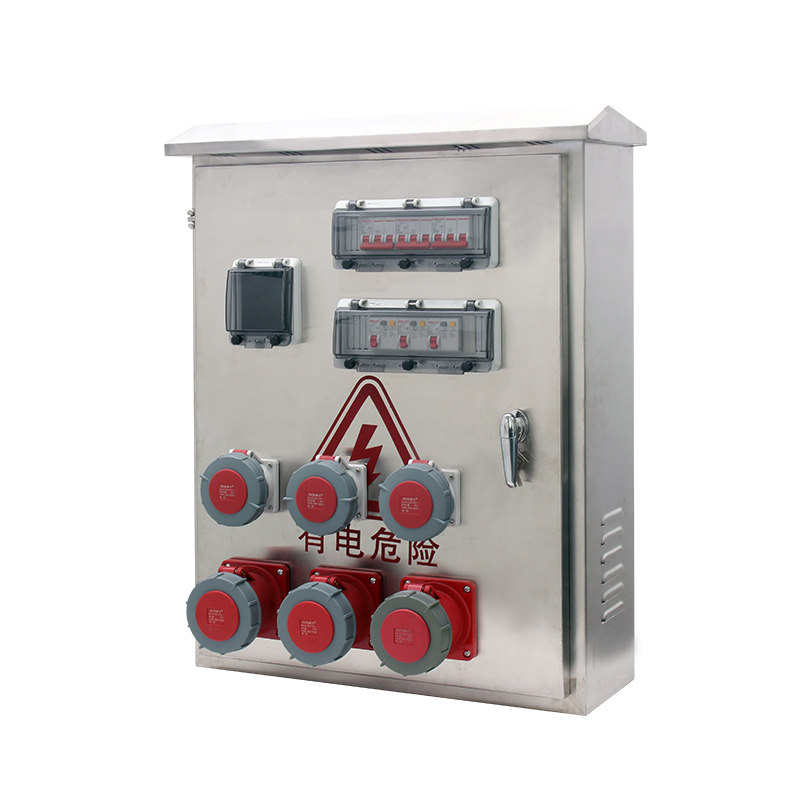

6PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three switches for protection with total switch size 800X600X200mm

输出电路:3*63A 5孔 IP67

3*16A 5孔 IP67

开关保护:主开关 4P 200A 漏电保护

3*3P 63A 空气开关 3*3P 16A 空气开关

主要参数:

  • 材质:304不锈钢,具有优异的耐腐蚀和耐磨性,适用于室外和椰子环境。
  • 防护等级:IP54,可防止来自任何方向的擦拭和水溅。
  • 安装方式:壁挂式,支持安装表面,方便安装,支架。
  • 插座类型:航空插座,专为满足高电流、高频插拔需求而设计,确保持久耐用。
  • 安全特性:配备锁设计,增强防盗和防止未授权的访问,提供额外的安全保障。
  • 配置灵活:提供多种配置选项,允许对内部电气元件和布局进行定制,满足特定要求。
  • 使用环境:非常适合在户外、湿度、多尘等参数下使用,在这些环境中,耐用性和可靠性至关重要。

使用场景:

  • 工业厂房区:生产线的紧急维护电源,快速解决设备故障,确保生产停止。
  • 建筑工地:为临时用电设备提供稳定可靠的电源,满足施工过程中的各种需求。
  • 公共设施:负责维护和保养室外设备,如路灯和监控摄像头,确保城市基础设施的顺利运行。
  • 农业灌溉:为室外环境(包括农田和果园)的灌溉系统提供高效可靠的电力支持,确保灌溉作业。
