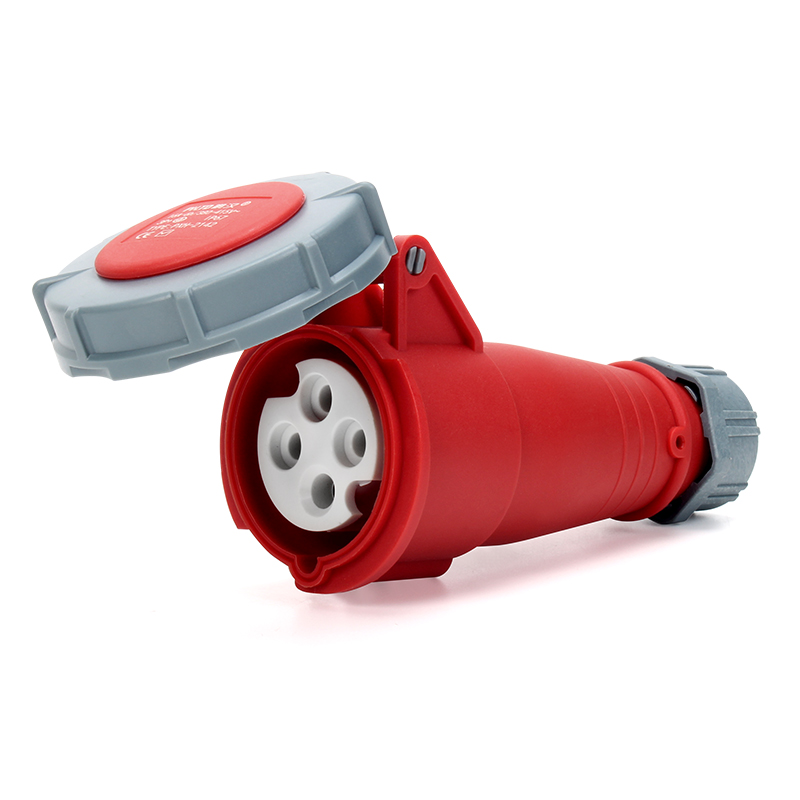

PHLTD High Current IP67 Waterproof Industrial Plug and Socket Connector (3-core, 4-core, 5-core, 63A, 125A, Male and Female Aviation Connectors)

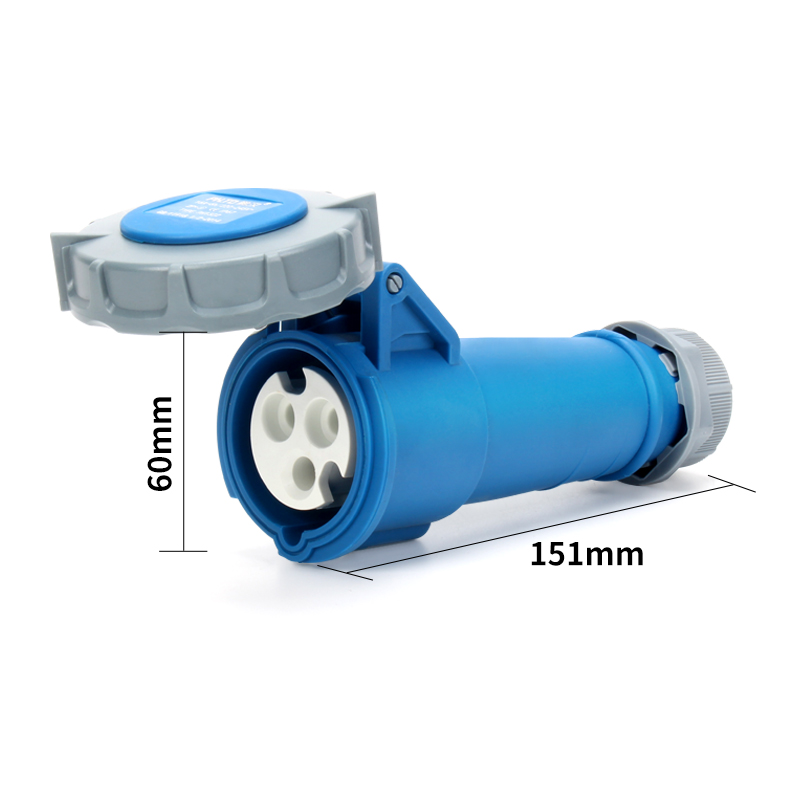

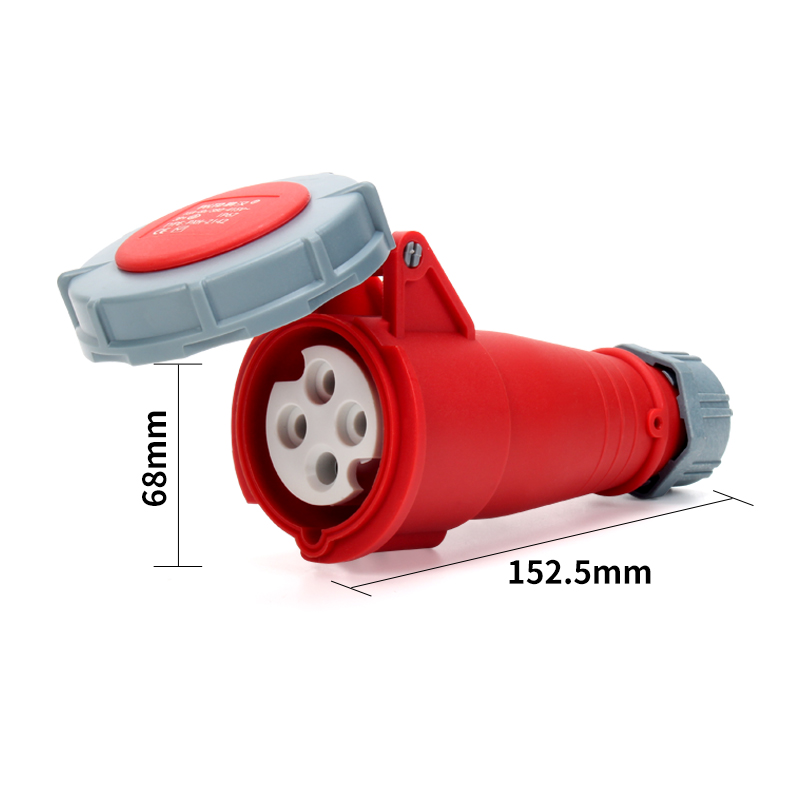

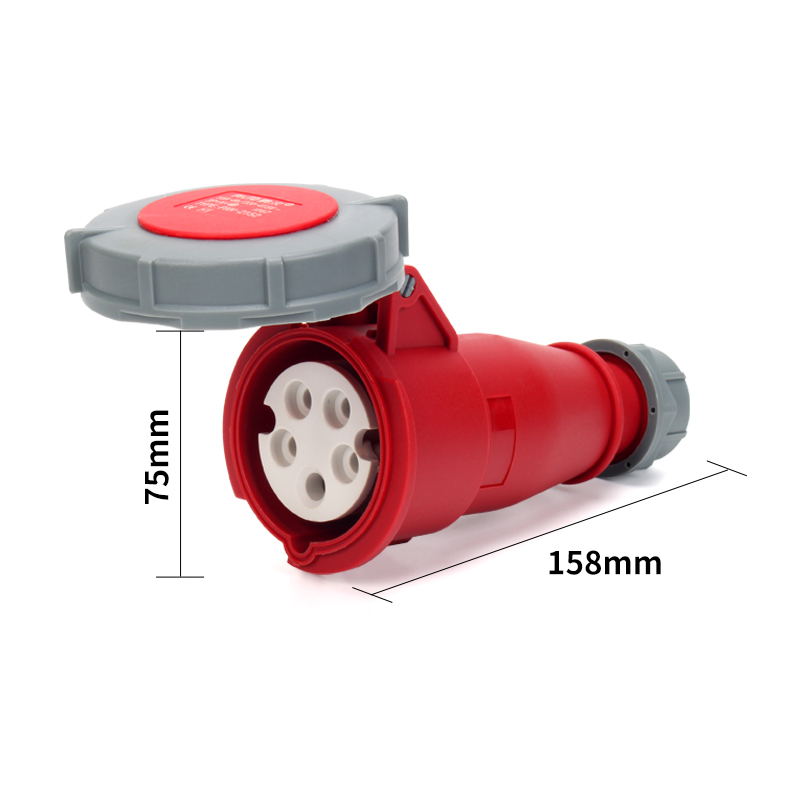

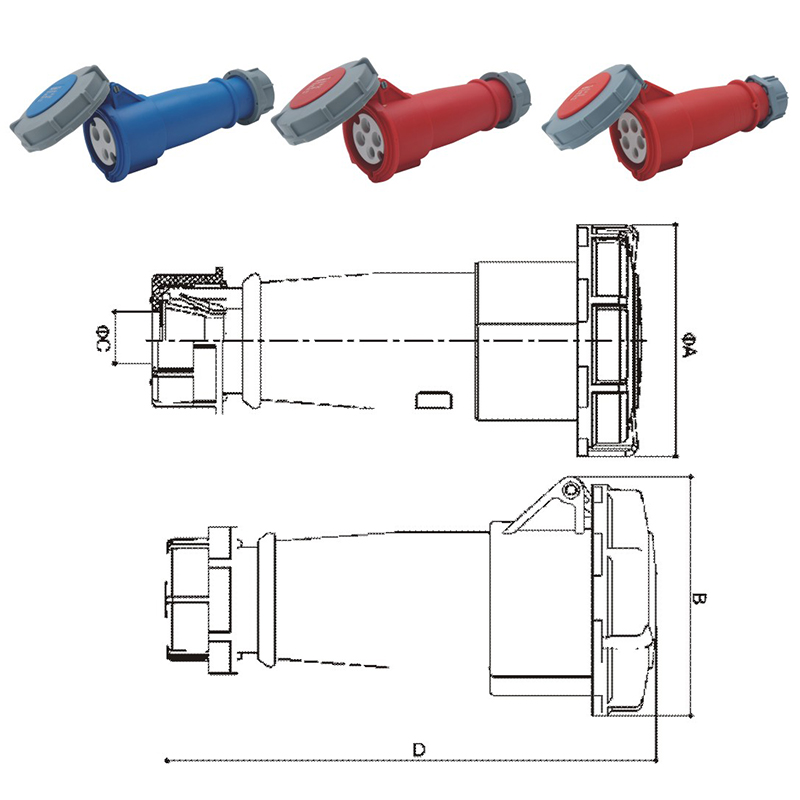

IP67 16A connector product parameter table
ampere	number of poles	a	b	c	d
16A	3	77	78.5	17	155
	4	82	88.5	17	157
	5	95	96.5	17	161.5
Wire cross-sectional area (square millimeters) from minimum to maximum 1.5-2.5

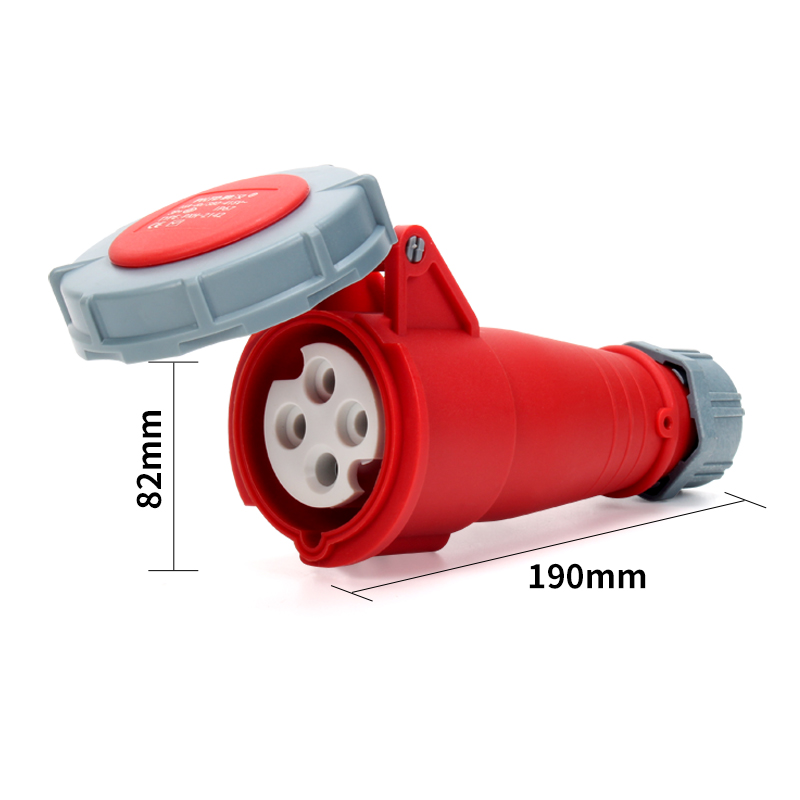

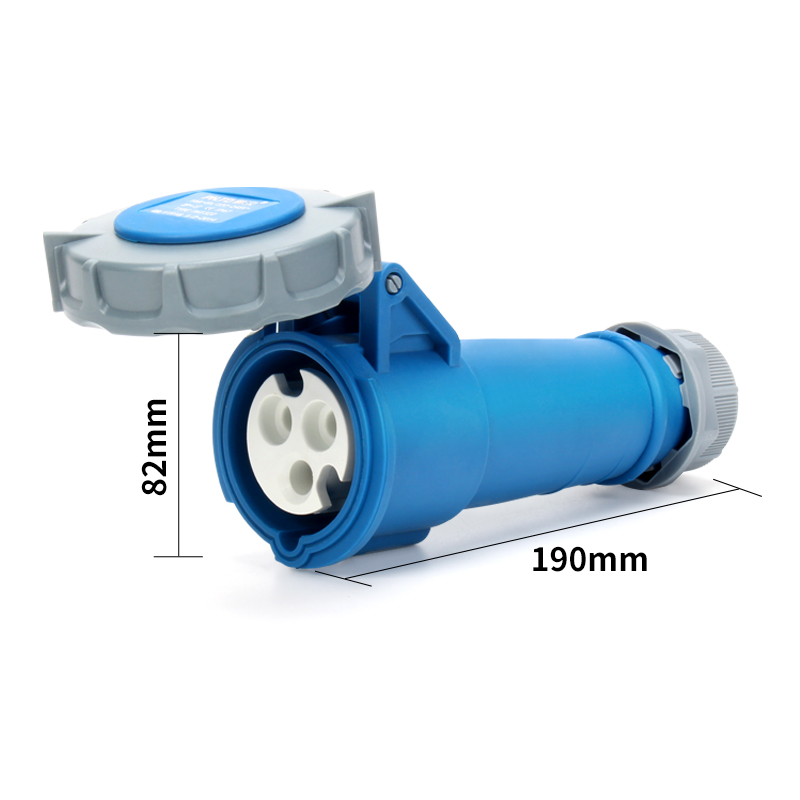

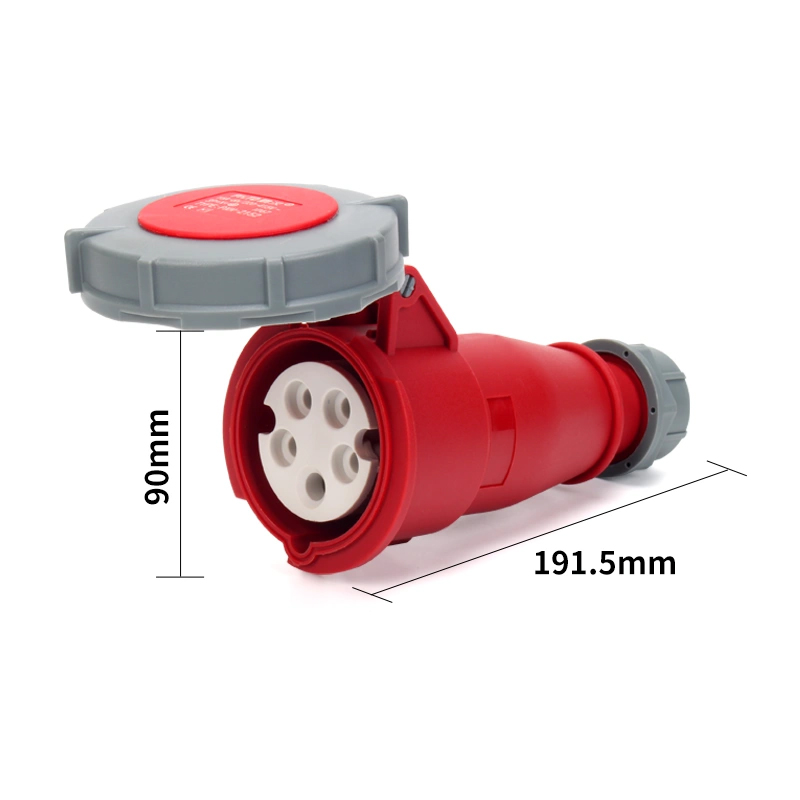

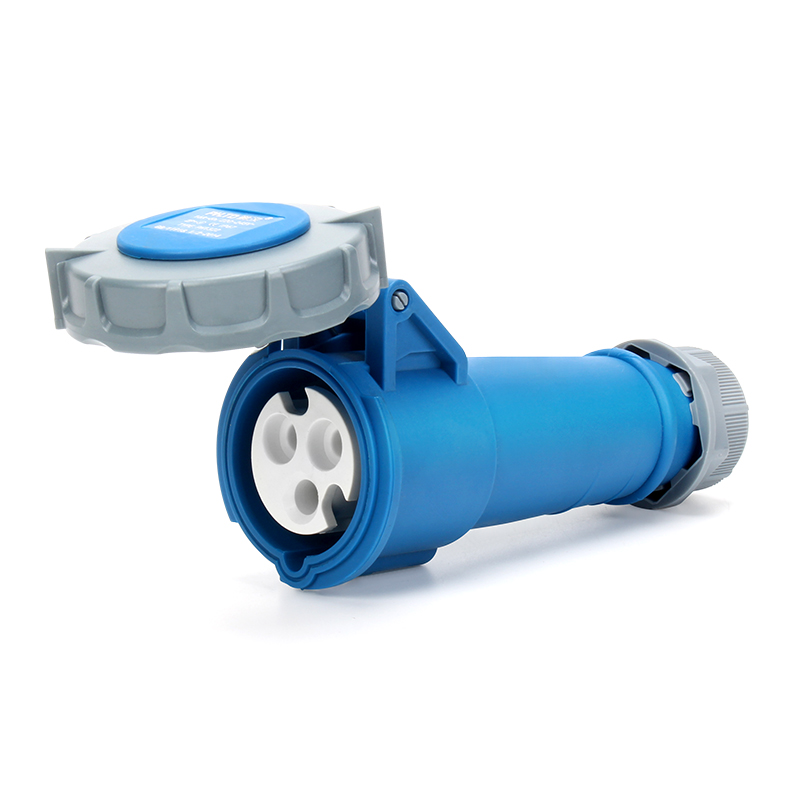

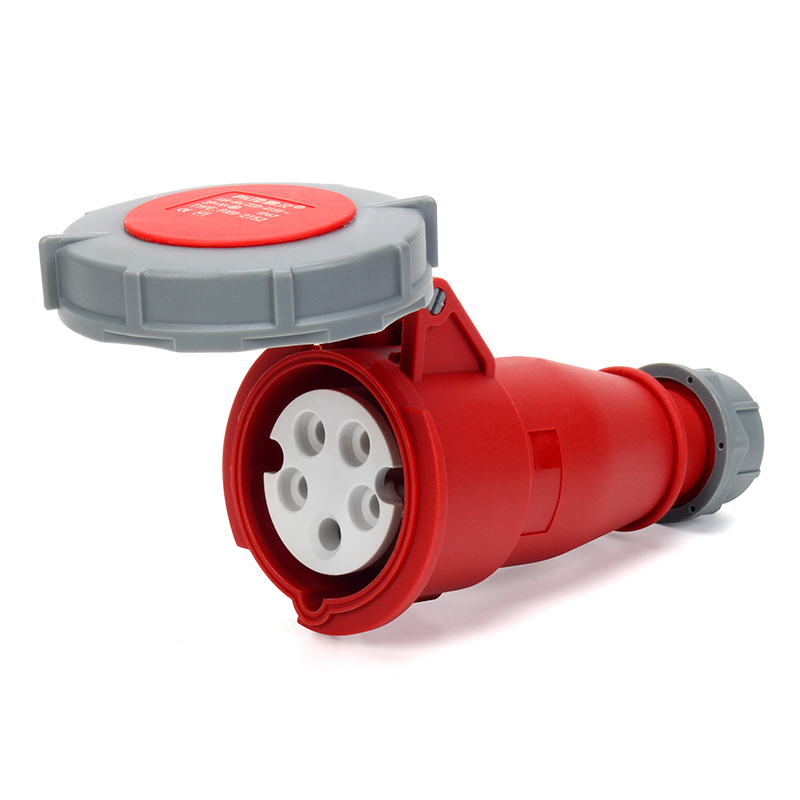

IP67 32A connector product parameter table
ampere	number of poles	a	b	c	d
32A	3	101	98	24	200
	4	101	98	24	200
	5	101	105	24	201
Wire cross-sectional area (square millimeters) from minimum to maximum4.0-6.0

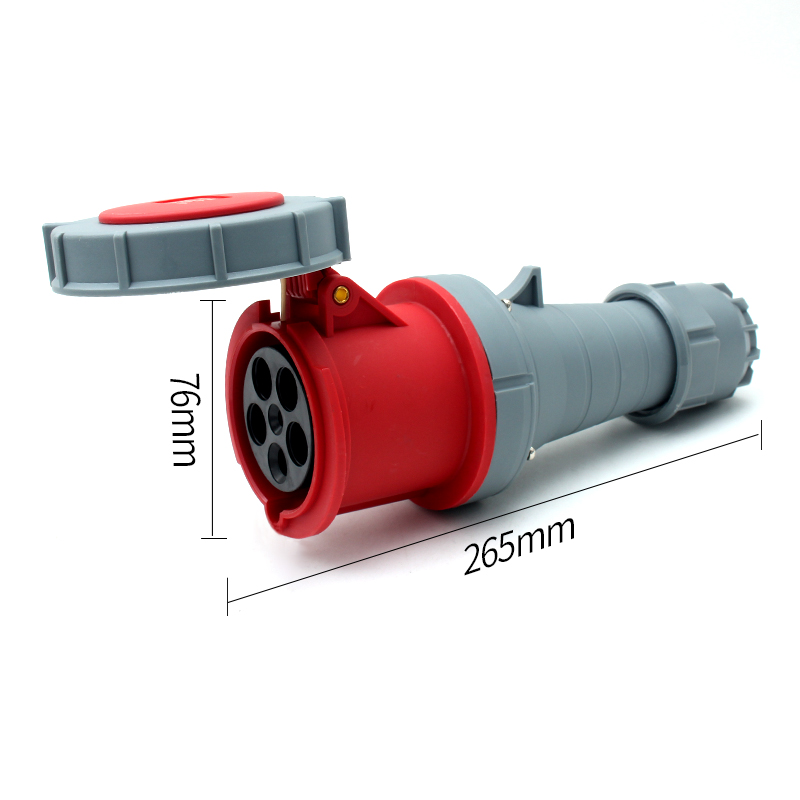

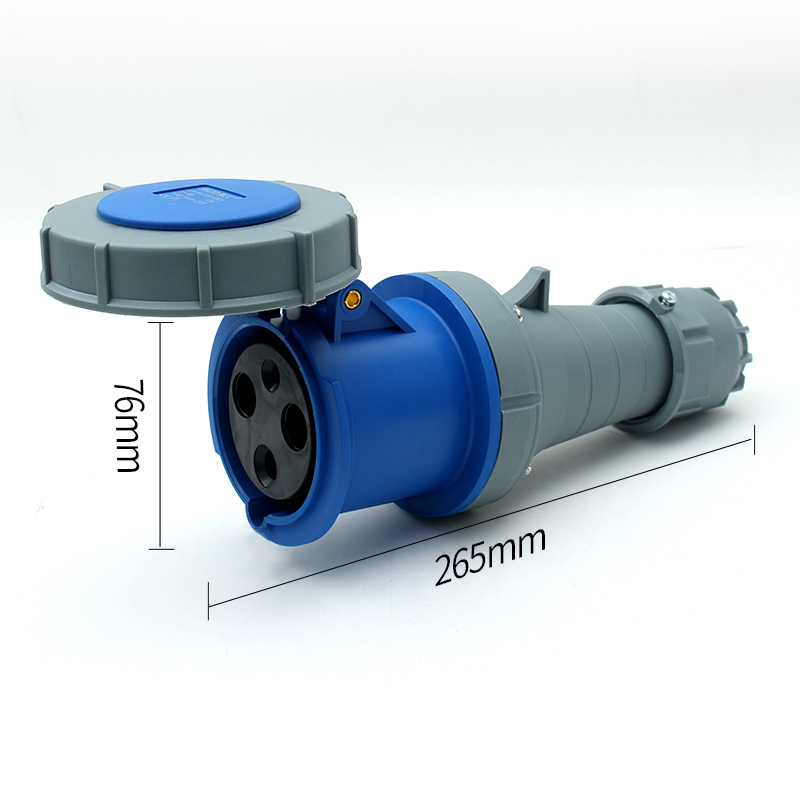

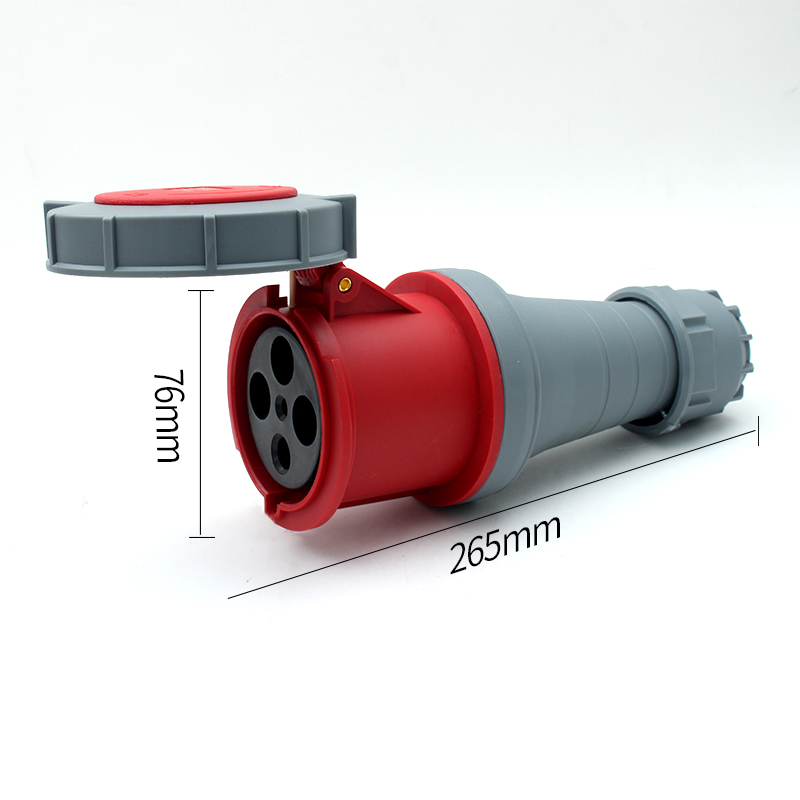

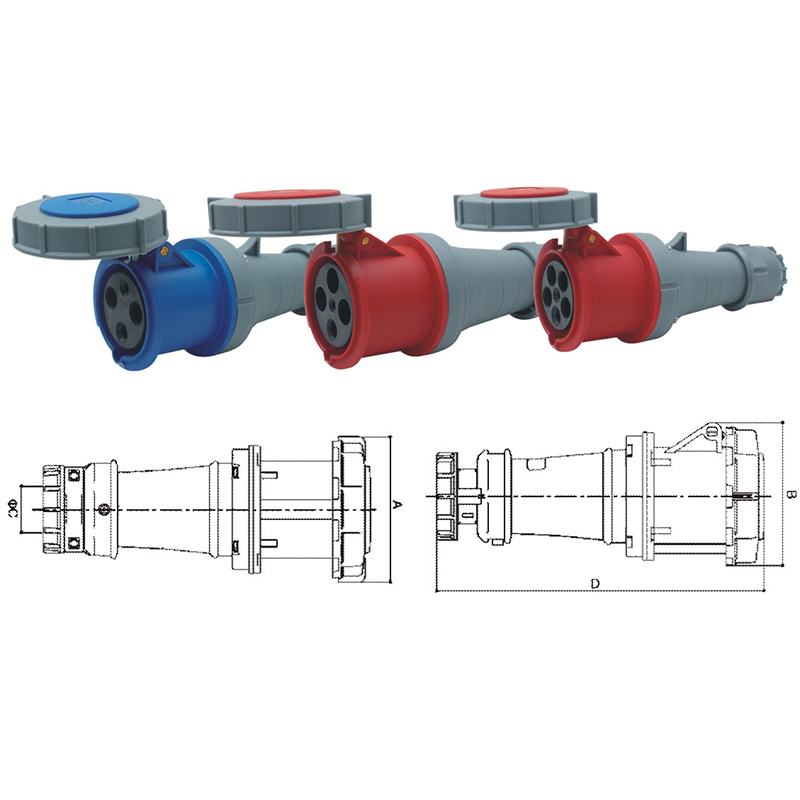

IP67 63A connector product parameter table
ampere	number of poles	a	b	c	d
63A	3	114.5	113	36.5	258
	4	114.5	113	36.5	258
	5	114.5	113	36.5	258
Wire cross-sectional area (square millimeters) from minimum to maximum 10-16

IP67 125A connector product parameter table
ampere	number of poles	a	b	c	d	e	f	g
125A	3	300	140	100	89.5	34.5	121	123
	4	300	140	100	89.5	34.5	121	123
	5	300	140	100	89.5	34.5	121	123
Wire cross-sectional area (square millimeters) from minimum to maximum25-35

The core features of PHLTD’s high-current IP67 waterproof industrial plugs, sockets, and connectors encompass:

High Protection Level (IP67):

• Features a multi-layered sealing structure integrated with sealing rings, waterproof gaskets, crafted from premium rubber or elastomers, ensuring superior elasticity and sealing capabilities.
• The mating surfaces incorporate specialized sealing grooves and rings that compress upon insertion, creating a watertight seal.

High Current Carrying Capacity:

• Capable of transmitting currents ranging from 63A to 125A, catering to high-power electrical equipment needs.

Shell Durability & Material:

• Constructed from robust, corrosion-resistant materials like nylon, polycarbonate (PC), or aluminum alloy, offering exceptional mechanical strength.
• The shell surface may feature anti-slip textures and scratch-resistant coatings for enhanced usability and longevity.

Safe & Secure Design:

• Incorporates anti-misoperation measures to ensure compatibility between matching plugs and sockets, preventing accidental connections.
• Features an anti-loosening locking mechanism that secures the plug in place, resisting vibration and external forces.
• Certain models offer additional safety features like short-circuit protection, bolstering overall system safety and reliability.

Versatile Application Scenarios:

• Ideal for diverse industries, including machinery, electrical equipment, shipbuilding, outdoor lighting, and renewable energy.
• Demonstrates remarkable performance and reliability in harsh industrial settings as well as humid and dusty outdoor environments.
